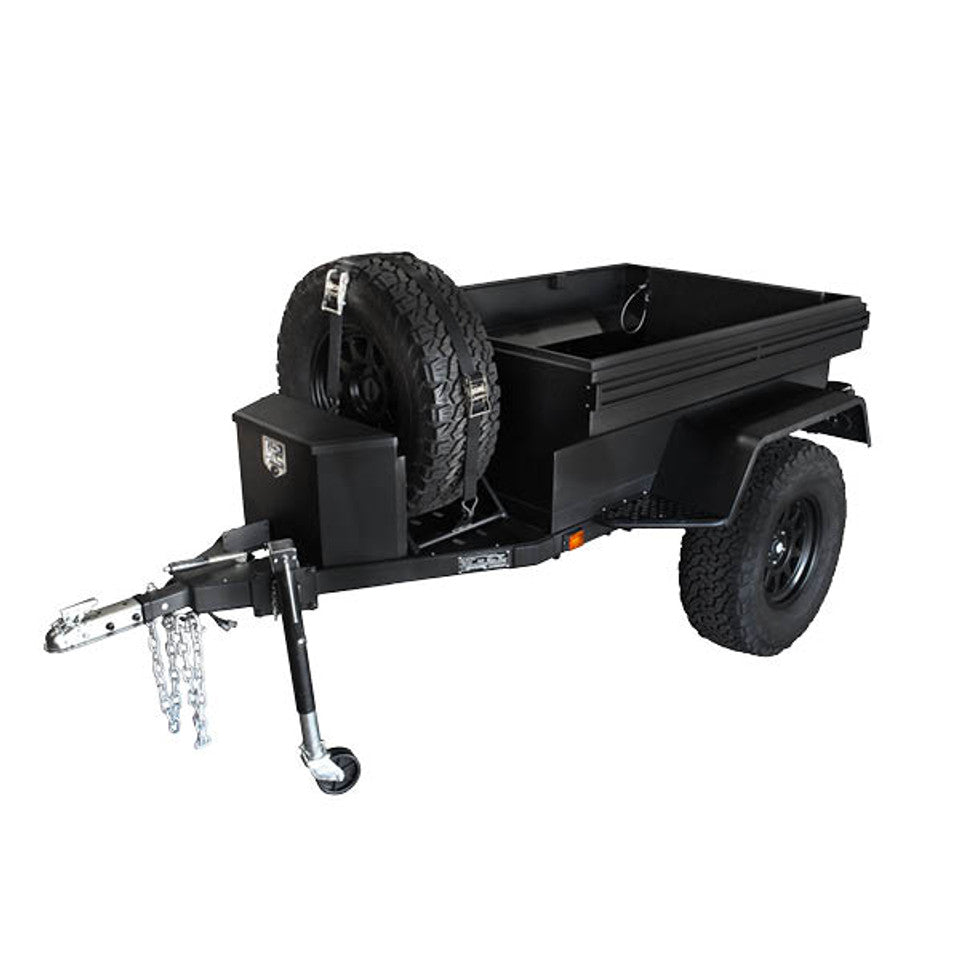

Overland Vehicle Systems - Offroad Trailer

Features

• Integrated Breakaway System for Failsafe Safety
• Manual Parking Brake for Roll Control On Any Terrain
• 2" Front Receiver Accommodates Ball Coupler, Articulating Hitch, or Pintle Hook
• Removable Heavy-Duty Jockey Wheel and Tongue Jack

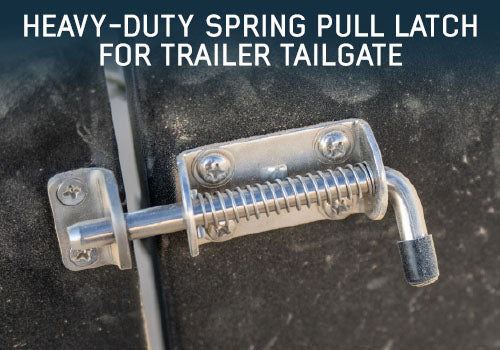

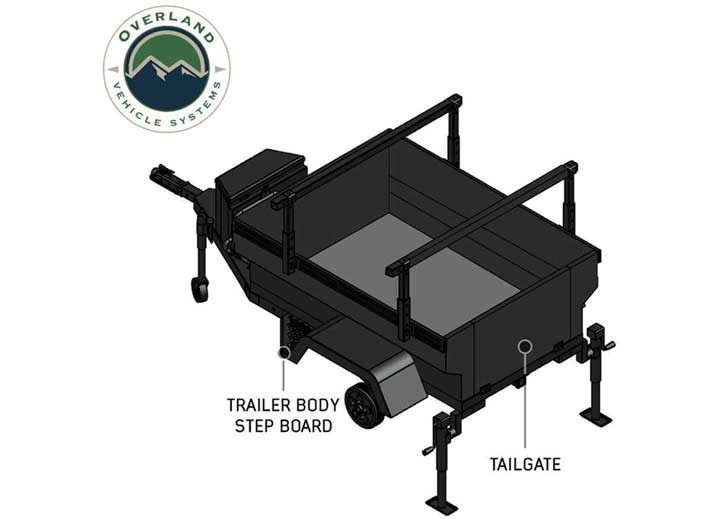

• Heavy-Duty Spring Pull Latch for Tailgate

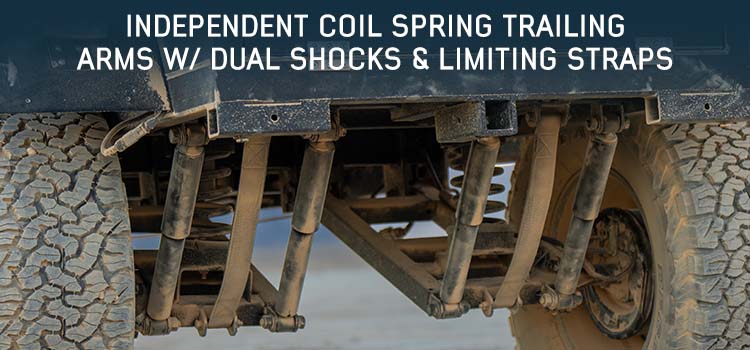

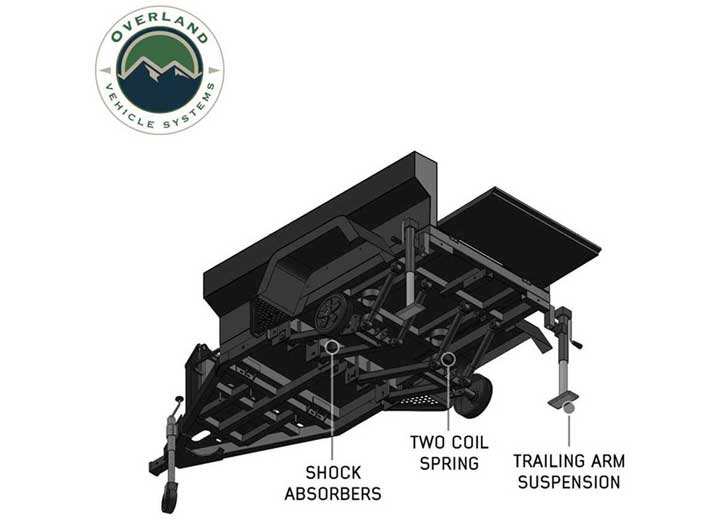

• Independent Coil Sprung Trailing Arms with Dual Shocks and Limiting Straps
• XD Coating On Bed and Underside

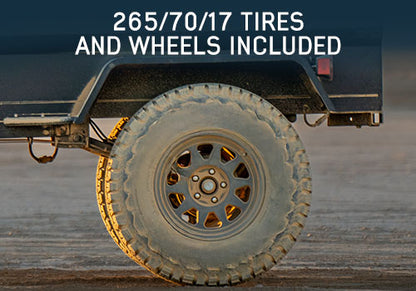

• Wheels and Tires Included

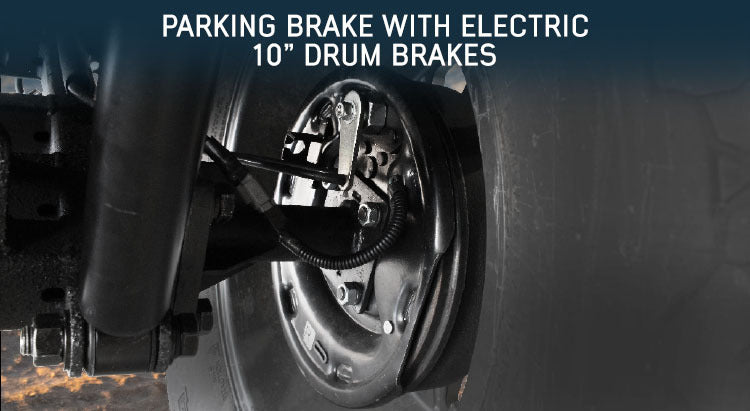

• Manual Parking Brake with Electric 10" Drum Brakes

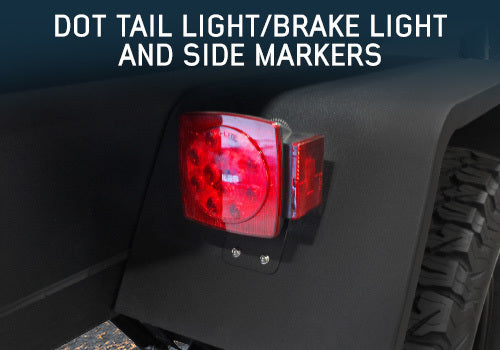

• DOT Tail Light/Brake Light and Side Markers

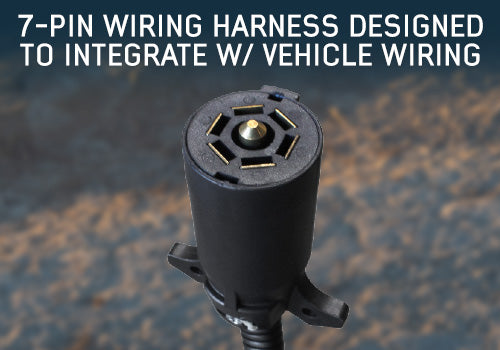

• 7-Pin Wiring Harness Designed to Integrate w/ Vehicle Wiring

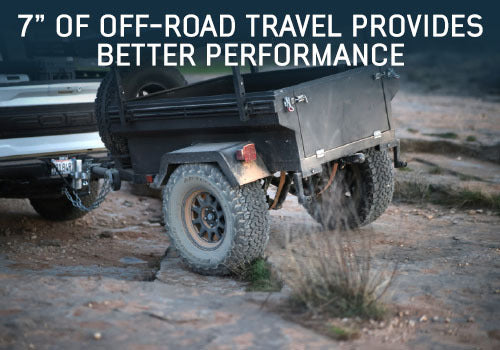

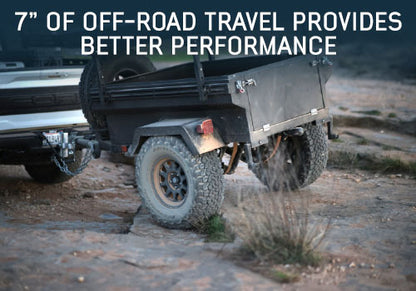

• 7" of Travel Provides Better Off-Road Performance
• Steel Construction
• Marine-Grade 304 Stainless Steel Hardware

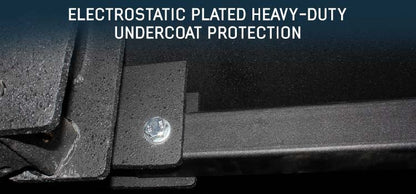

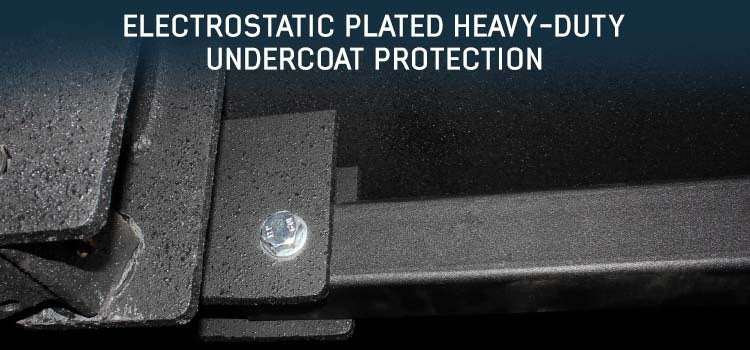

• Electrostatic Plated and Military-Grade Two-Stage Black Powder Coating Finish
• Quality Backed Warranty

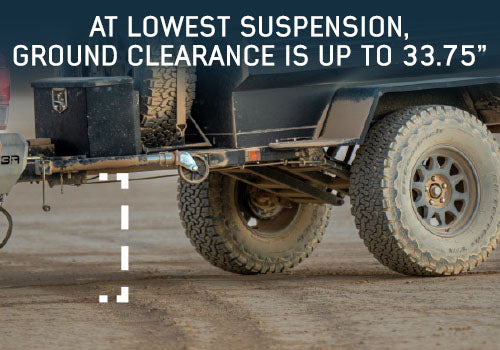

• At Lowest Suspension, Ground Clearance is up to 33.75" with 37" Tires.
• 11' Turning Radius
• Trailer is a Kit and must be assembled

Specifications

• Packaged Trailer Weight: 1302 LBS.
• Cargo Weight Capacity: 2004 LBS.
• Rear Hitch Tongue Capacity: 200 LBS.

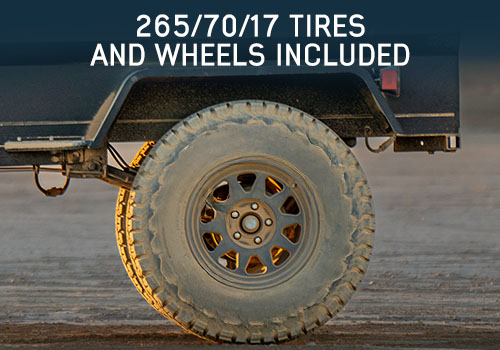

• Tire Sizes: 265/70/17

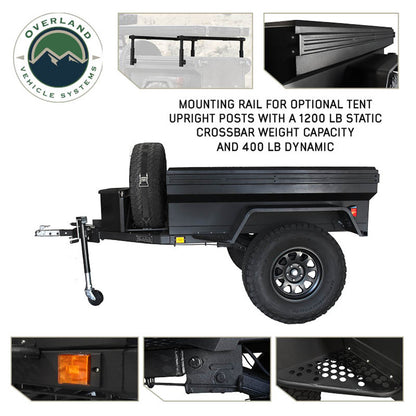

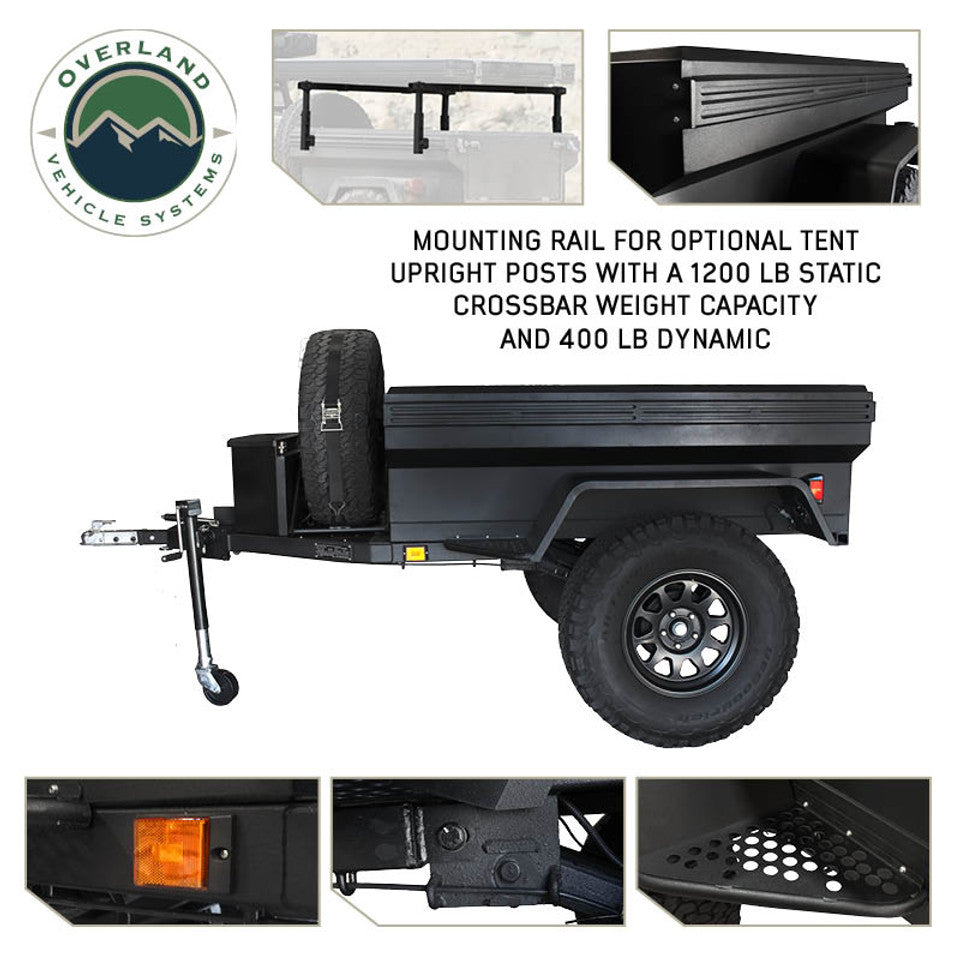

• Upright Weight Capacity Static: 1200 LBS.
• Upright Weight Capacity Dynamic: 400 LBS
• Tailgate Weight Capacity: 150 LBS.
• 5x5 Bolt Pattern SKU: 70100010
• 5x5 Bolt Pattern UPC Code: 810038736280
• 6x5.5 Bolt Pattern SKU: 70100030
• 6x5.5 Bolt Pattern UPC Code: 810161450442

Component Weights

• Tent Upright Post Weight: 85.09 lbs.
• Tongue Cargo Box Weight: 33.28 lbs.
• Spare Tire Carrier Weight: 9.47 lbs.
• Support Jack (Each): 16.09 lbs.
• Support Jacks (Pair): 32.18 lbs.
